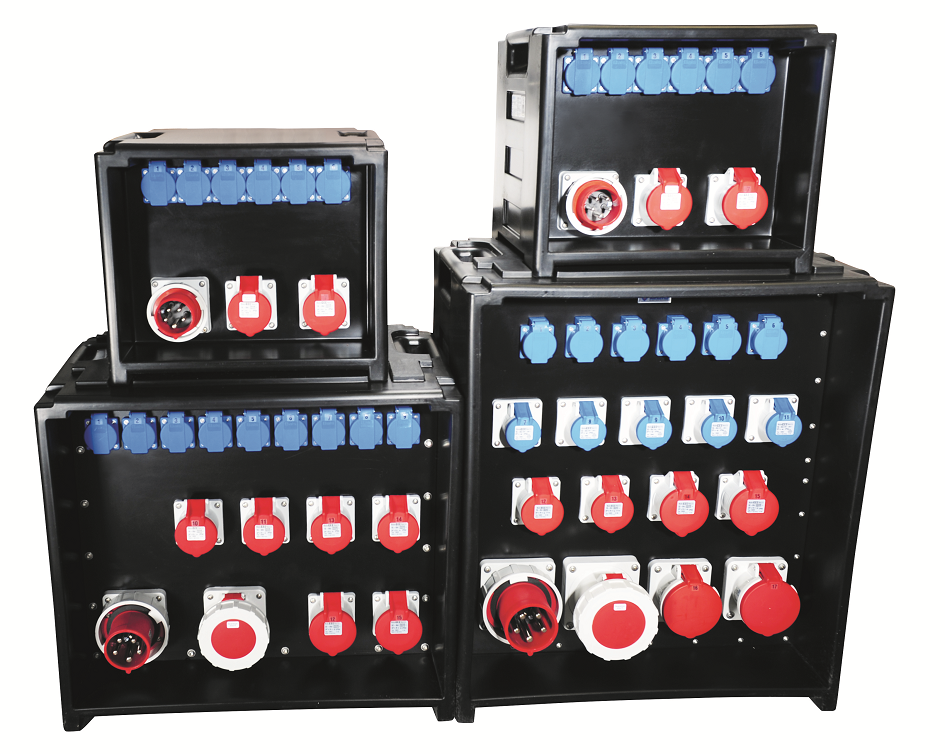

    EVOBOX

    MOBILE POWER DISTRIBUTION





Mobile supply units for various applications



EVOBOX is the perfect solution for mobile energy supply in industry, on construction sites and in event technology.

Easy to handle and perfect stackability




The portable distributor series is available in four coordinated housing sizes and impresses with its high mechanical and thermal load capacity.  Two integrated handles make handling easy.The perfect stackability of the distributor housing is just as much a practical advantage as the screwless and maintenance-free Quick Connect connection technology for CEE and protective contact sockets, which is a matter of course for Bals.

Product information:

  • Available in 4 coordinated housing sizes
  • Easy-to-handle, using integrated carrying grips
  • Ready wired for installation
  • Resistant to ageing and weather
  • Lightweight and impact resistant through the use of hard-polyethylene



  • Distributor outlets and fuse elements each separately on one side
  • Fuse elements under transparent operating windows
  • Optional phase control lights are under operating windows and external earthing screw
  • The housing can be blue, red and orange (minimum oder quantity)

Technical data:

  • Impact strength IK10, up to 20J impact energy
  • Self-extinguishing and UV-stabilized
  • Highly resistant thermally and mechanically
  • Maintenance-free QUICK-CONNECT-technology for CEE up to 63A and domestic sockets
  • Overall protection degree of the distributor up to IP54
  • Flexible fitting options up to 125A




The sockets are also available completely in black

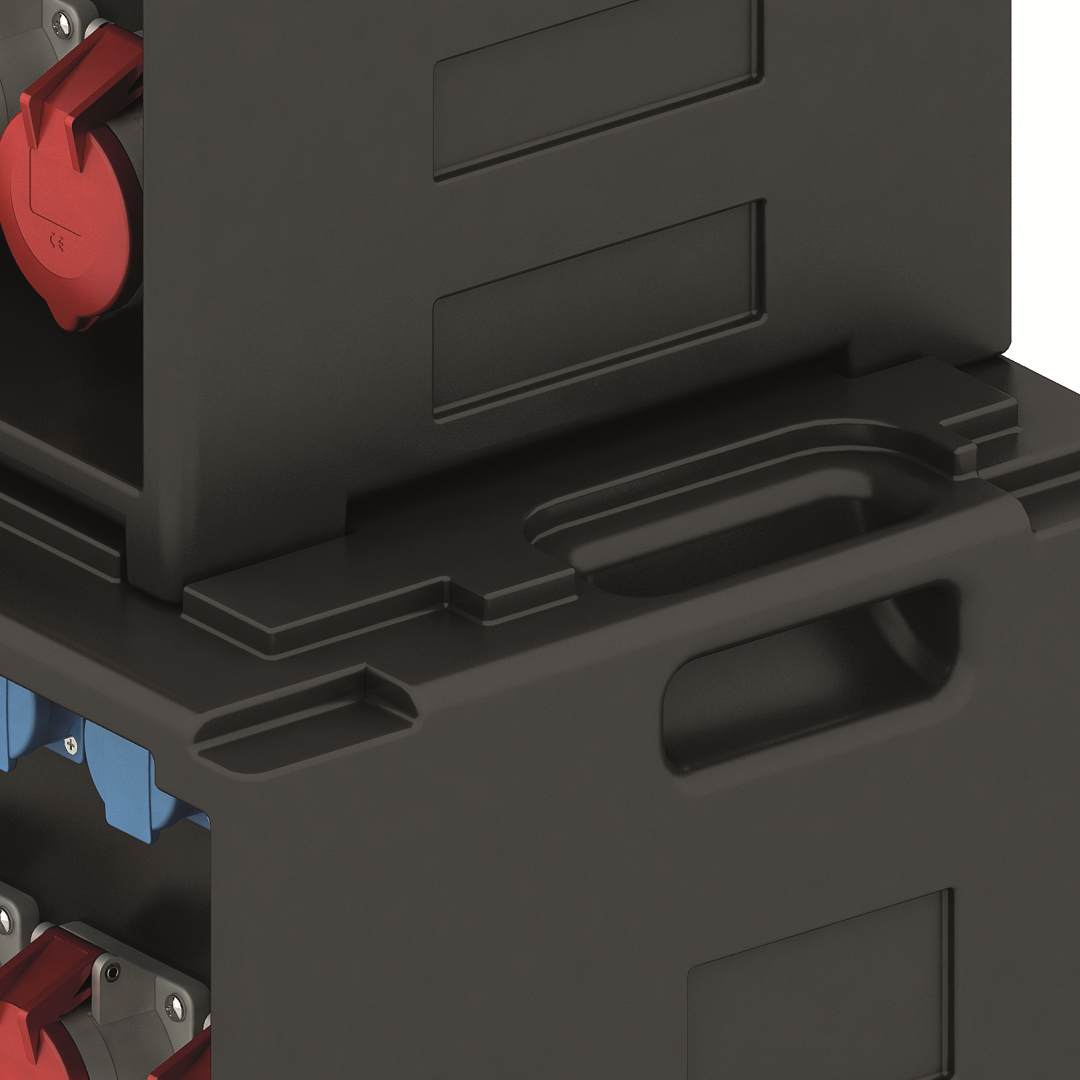

Perfectly stackable

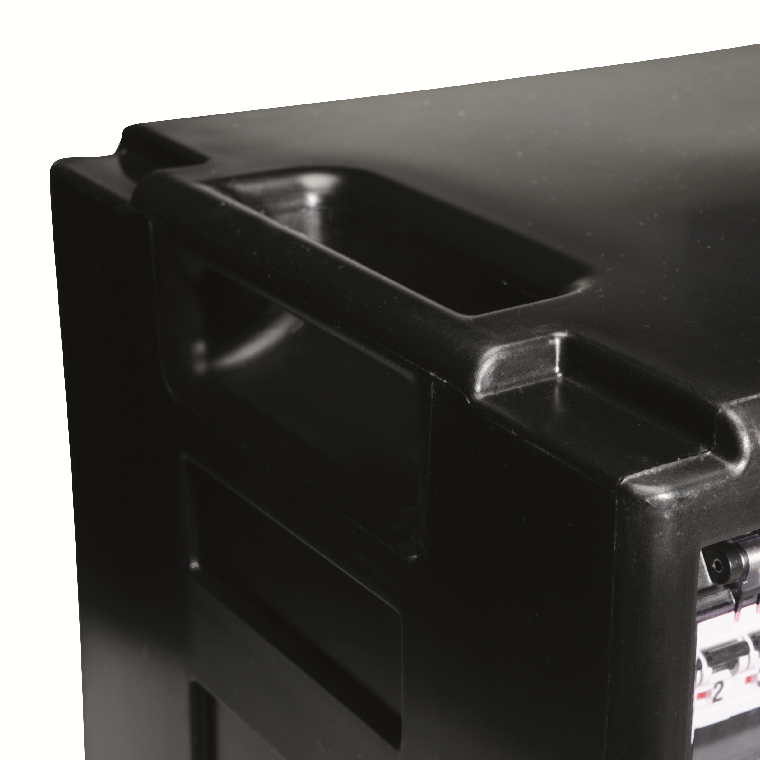

With 2 integrated carry handles

See more - The EVOBOX animation!
