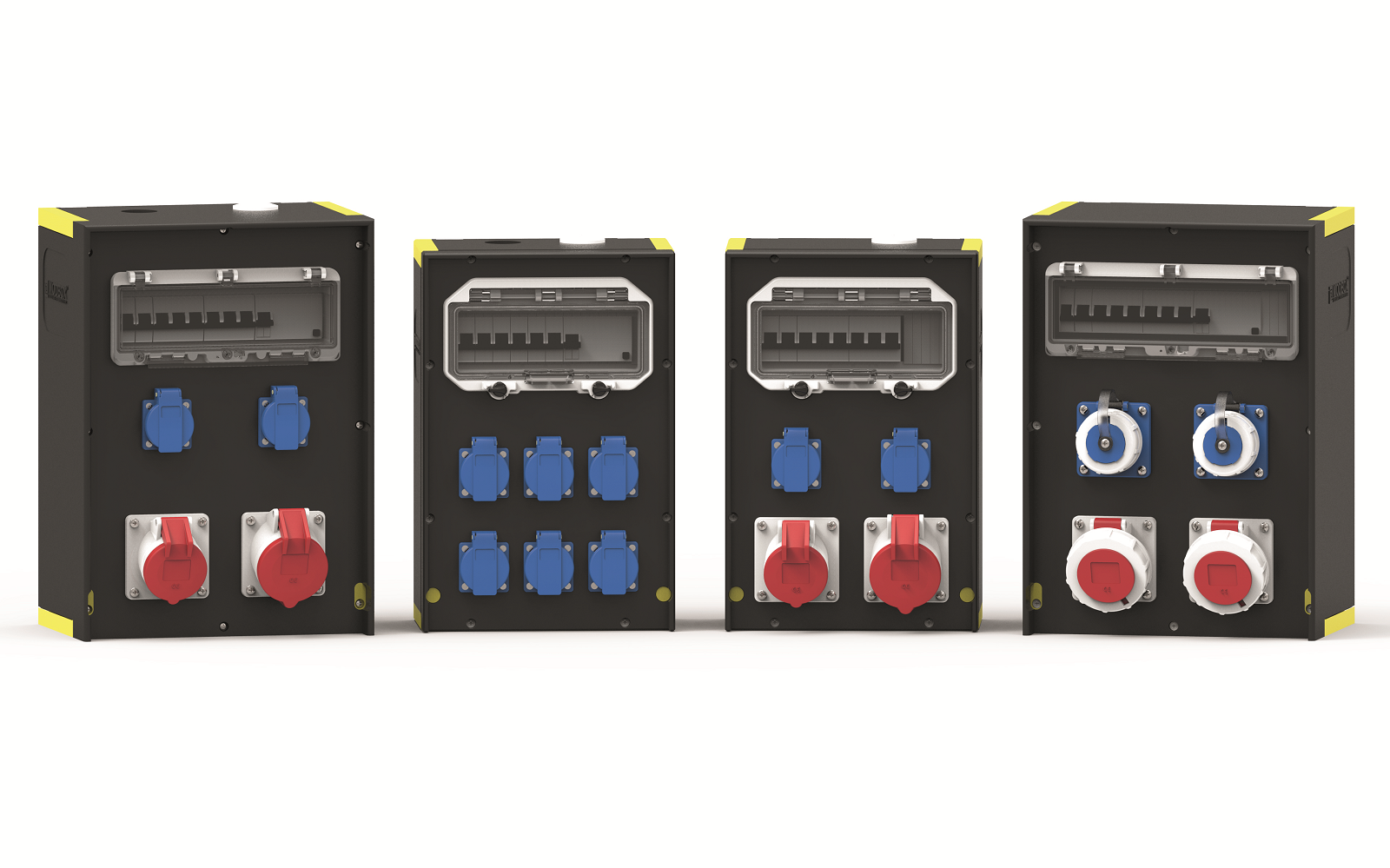

MODBOX and MODBOX MIDI



Do you need a power distributor that you can always rely on, even under the most difficult and toughest conditions? The rubber distributor series MODBOX and MODBOX MIDI are the right solution for you - this distributor series goes far beyond the robustness that you would normally expect from a power distributor - and even up to a protection degree of IP 68.

Modular and extreme impact-resistant


If you need a robustness and impact resistance distributor system, the MODBOX and MODBOX MIDI leave nothing to be desired. Thanks to the special rubber compound, a hardness of outstanding 99 shore is achieved! But the solid rubber distributors in a design-oriented robe offer many other advantages: Thanks to the modular structure, the perfect, innovative solution can be implemented for all areas.

‚ÄčTechnical data

  • Maximum Protection degree IP68
  • With MODBOX MIDI with user-friendly OTC operating window (OTC mechanism)
  • Modular expansion on all 4 sides
  • Yellow end corners for increased safety
  • Cover available on request with or without rain roof

  • Hard Rubber mixture with hardness grade of 99 shore
  • Corners and stability framework are made of cured glass-fibre-reinforced Polyamide
  • Outer corners luminous on request
  • Fully insulated
Material properties

  • Impact-resistant
  • UV-resistant
  • Halogen-free
  • Resistant to ageing, temperature, oil and acid
  • Excellent resistance to chemicals
  • Flame-resistant, self-extinguishing

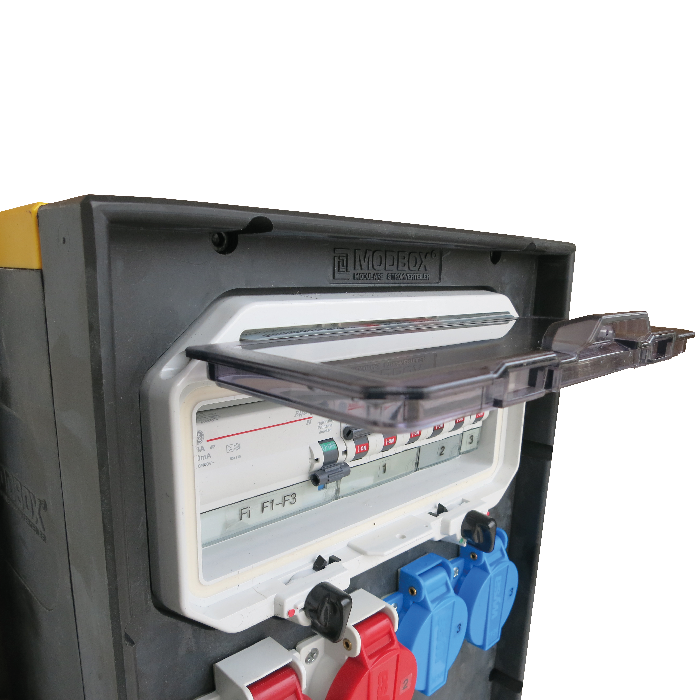

The fuse elements are well protected behind the operating window

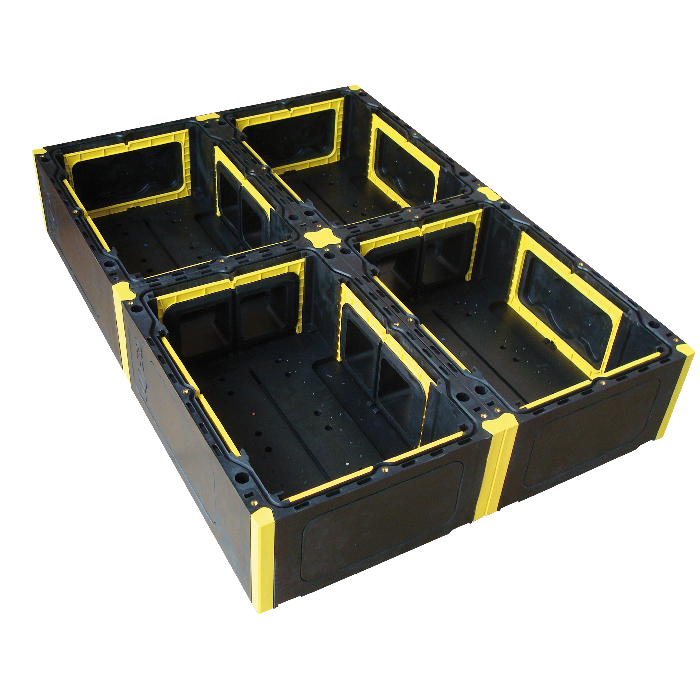

The modular system allows expansion in all 4 directions

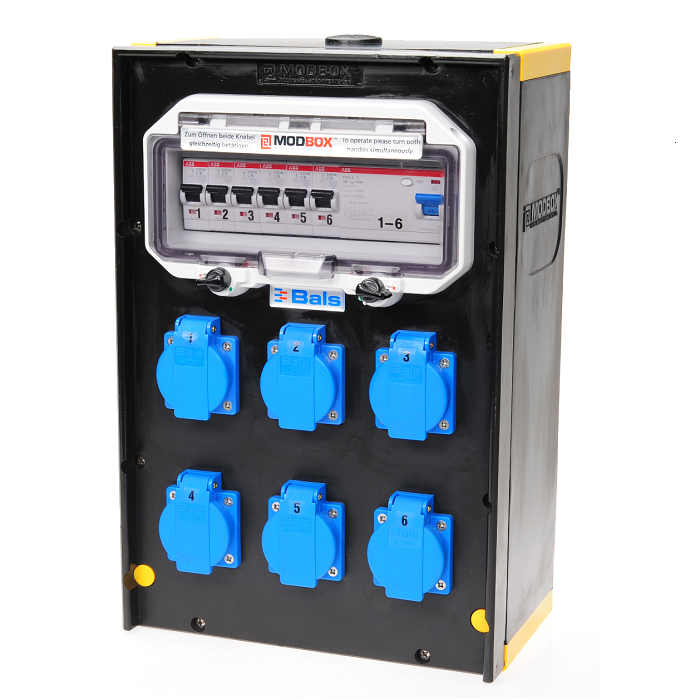

The MODBOX Midi impresses with its compact housing dimensions

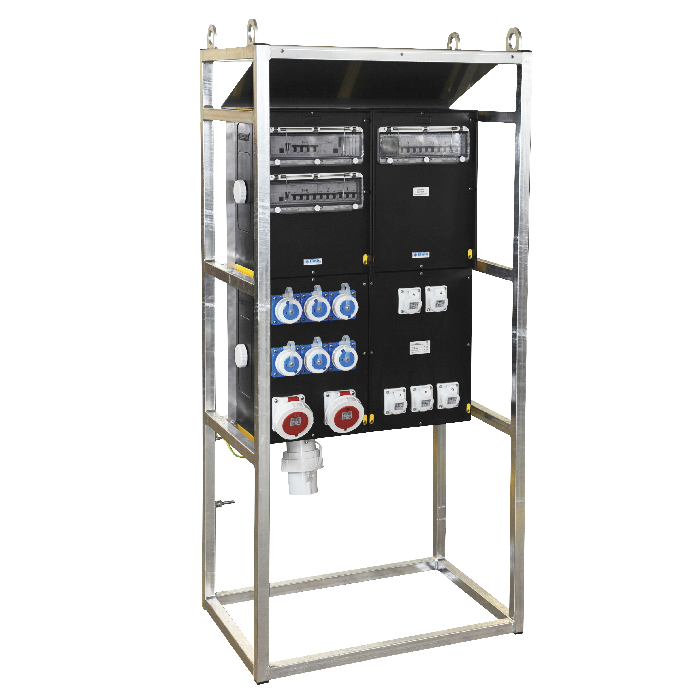

Construction as a special distributor with metal frame.

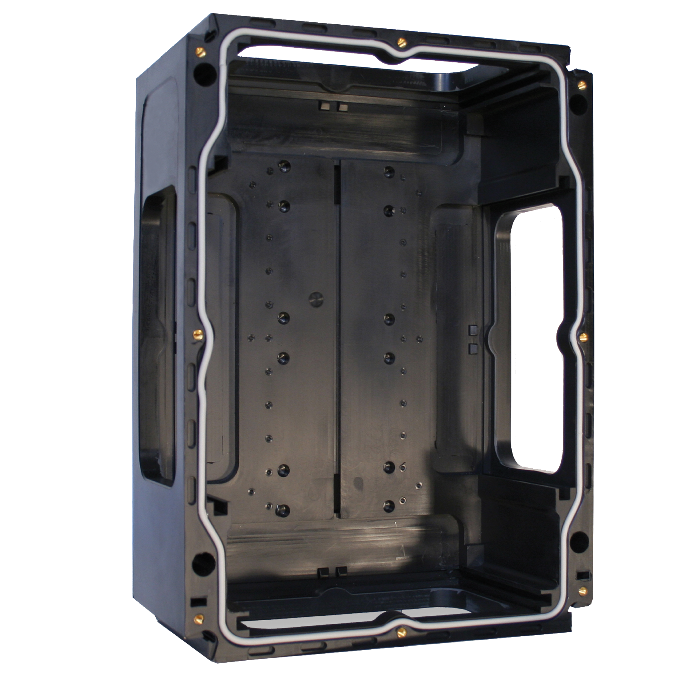

Solid wall thicknesses make the housing so robust

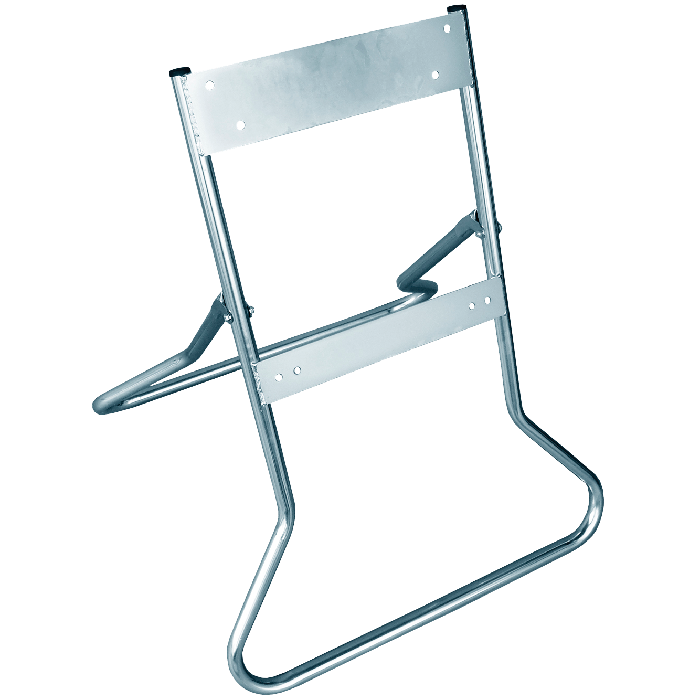

A metall frame is available in the accessories
