Domestic plug and connector with MULTI-GRIP





The new domestic plugs and connectors are now
available with a new separated design and with
the unique MULTI-GRIP cable gland. This integrat-
ed strain relief system invented by Bals. Which
has proven itself for over 15 years, also makes
installation simpler and above all safer in the
area of domestic plugs and connectors.

Plug

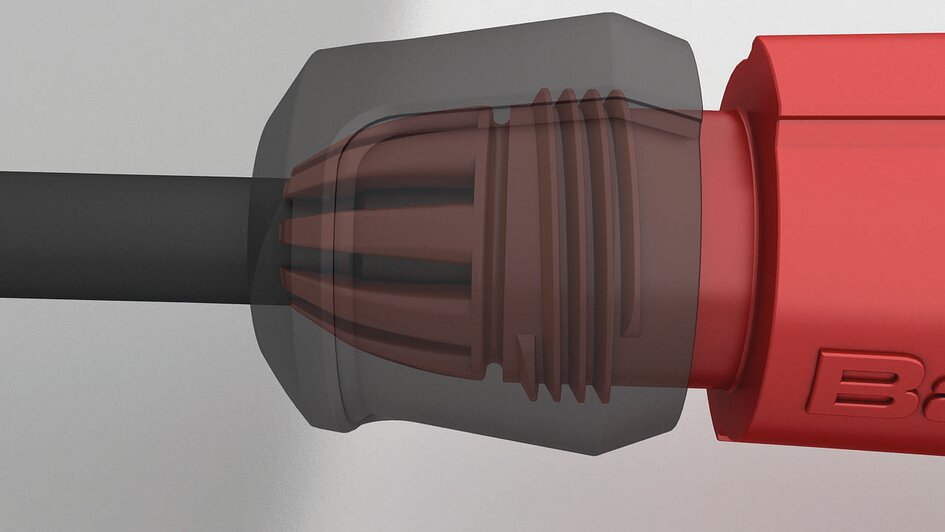

MULTI-GRIP cable gland with integrated strain
relief and seal

• Protection degree IP44

• Easy and quick installation due to separated
design

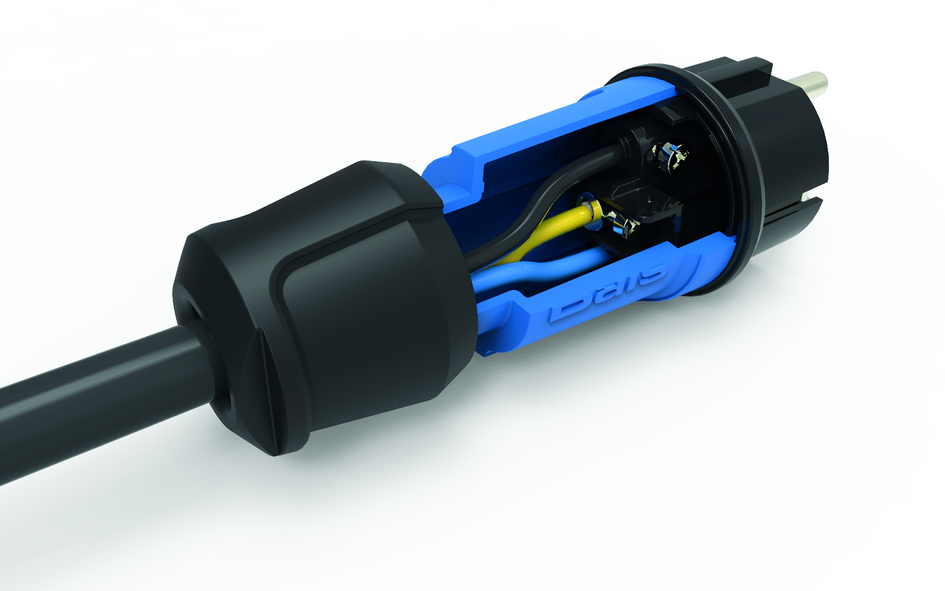

• Spacious connection area

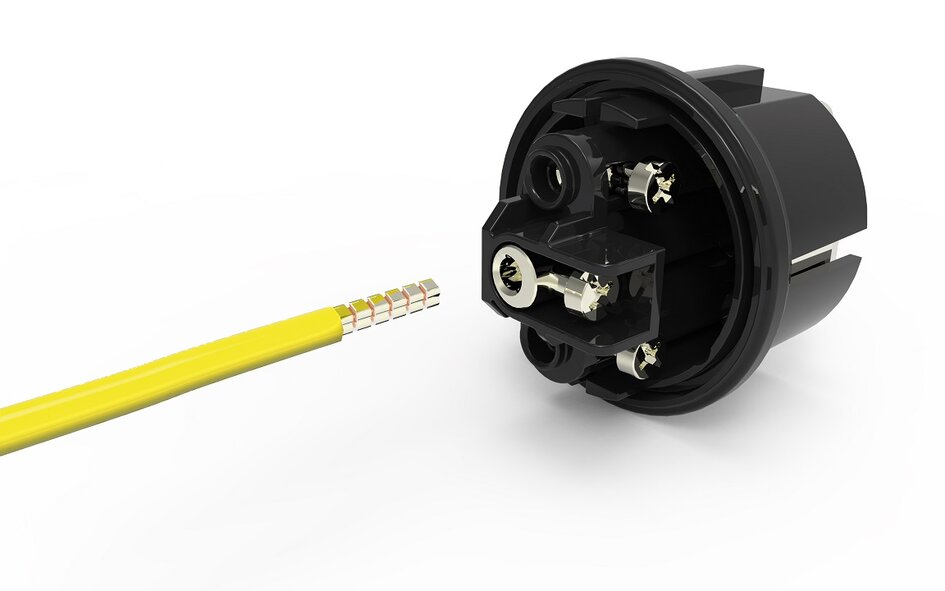

• The alignment of the connections is the same
for all contacts and the connection screws can
therefore all be operated from one direction

• The housing and connection screws can be
screwed with one and the same tool

• Cross sections of 1 mm² to 4 mm² can be
connected without problem

• Also suitable for Belgian/French systems
(plugs)

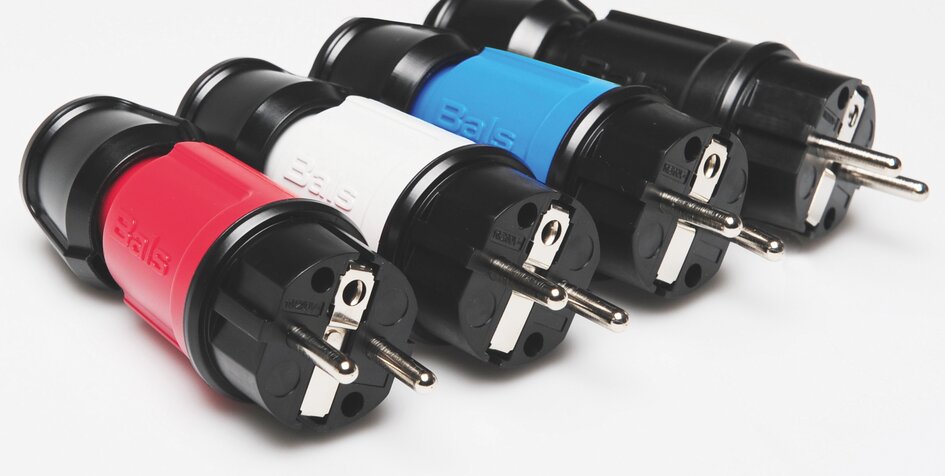

• Different colour variants (blue, red, black and
grey) available

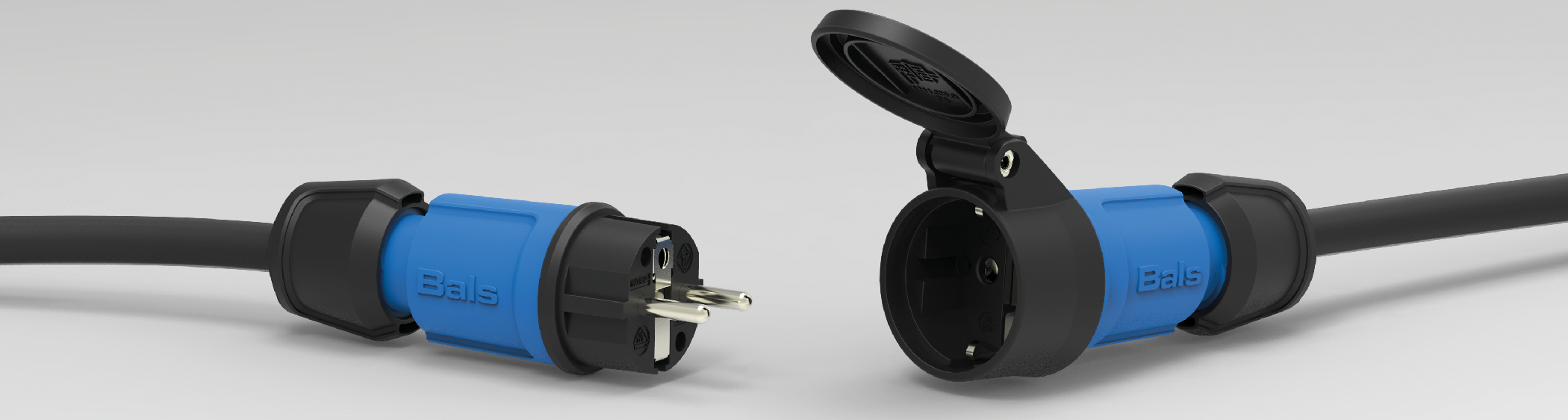

Connector

•  Like plugs but also:

• Optional child protection

• Also available in Belgian/French system

• IP54



Products of domestic plugs and connectors
