The industrial version for your distributor system

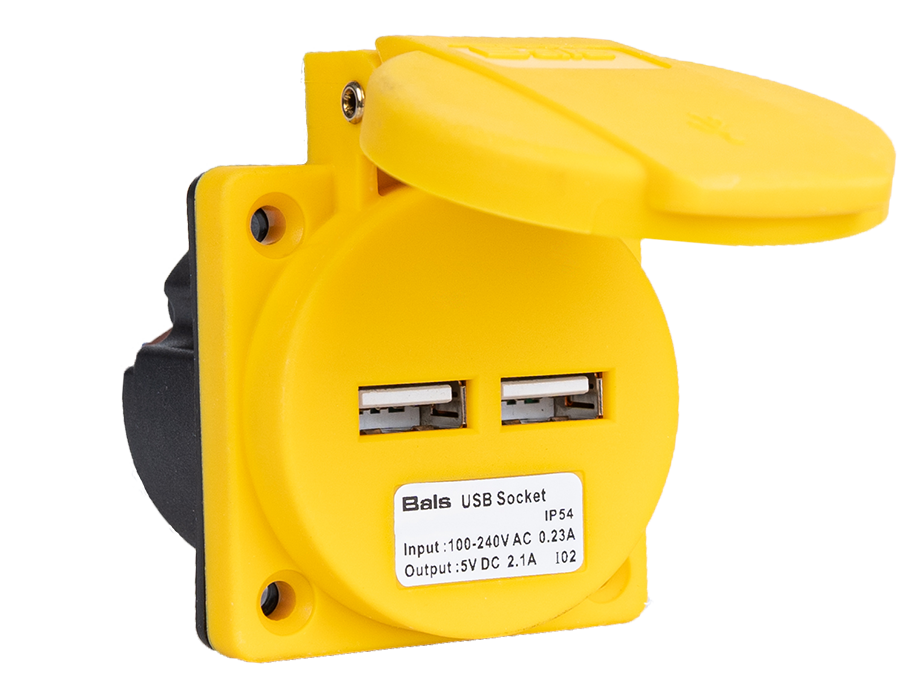

Mobile devices such as mobile phones, PDAs, MP3 players, portable navigation units and headsets shape everyday life. These devices are generally charged at a USB socket. We have now developed a matching industrial variant which is made of highquality housing material, has protection class IP54 and can charge two devices simultaneously. The hinged lid provides the USB sockets with optimum protection against dust, dirt and moisture.

The compact design and small installation depth guarantee space-saving, top-mounted or front-mounted installation. Owing to its standard flange size of 50x50 mm, it can replace an existing domestic socket without problem; the installation and attachment dimensions are identical. The robust charging socket has two USB 2.0 Type A sockets and fits perfectly in a combination housing. The sockets are ideal for individual mounting or for space-saving side-by-side installation.

Product features:

  • Robust industrial variant
  • Perfect optical integration in the existing system
  • USB sockets protected by a hinged lid
  • Simple replacement of standard domestic sockets in existing combination housings
  • Individual or combined installation



  • Hinged lid positioned at 90°
  • The housing has a high impact strength and excellent flame resistance
  • Small installation dimensions (approx. 27.5 x Ø43 mm)
  • Simple top mounting (retrofitting also possible)

Technical data:

  • Twin USB charger
  • Input voltage: 100 – 240 V
  • Output: 5 V DC / 2.1 A
  • Output: 2x USB-A sockets
  • Inlet: Approx. 0.2m cable
  • Housing: Plastic (yellow)
  • Flange 50x50 mm
  • Protection degree IP54



Productsite



We recommend the installation of a pre-fuse 1A e.g. type 581450 fuse terminal block 1p for DIN rail incl. 1A microfuse 5x20mm or type 581457 fuse holder 1p for "flying" wiring 1A incl. microfuse 5x20mm.

The standard flange dimension of 50x50mm, facilitates the exchange of conventional sockets

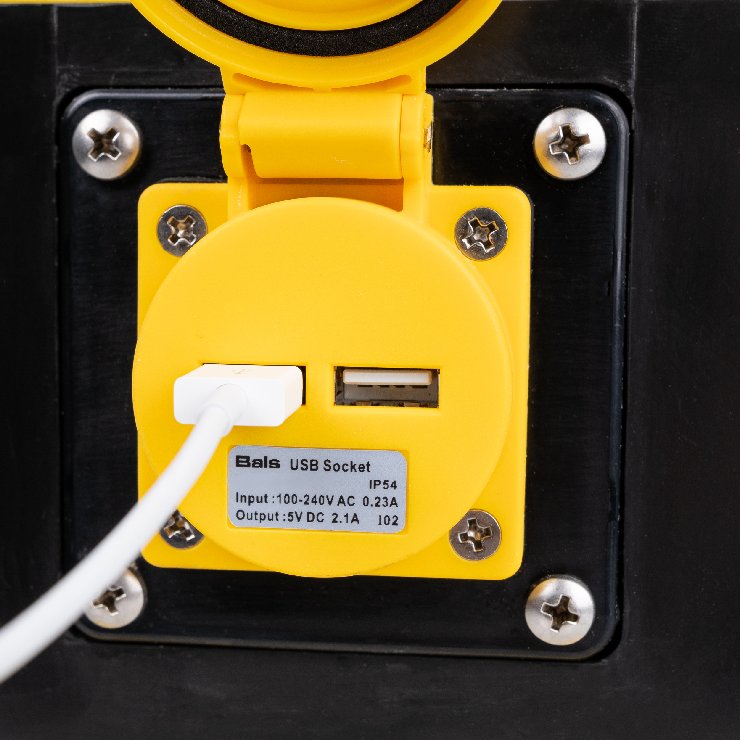

Perfect optical integration in the existing system

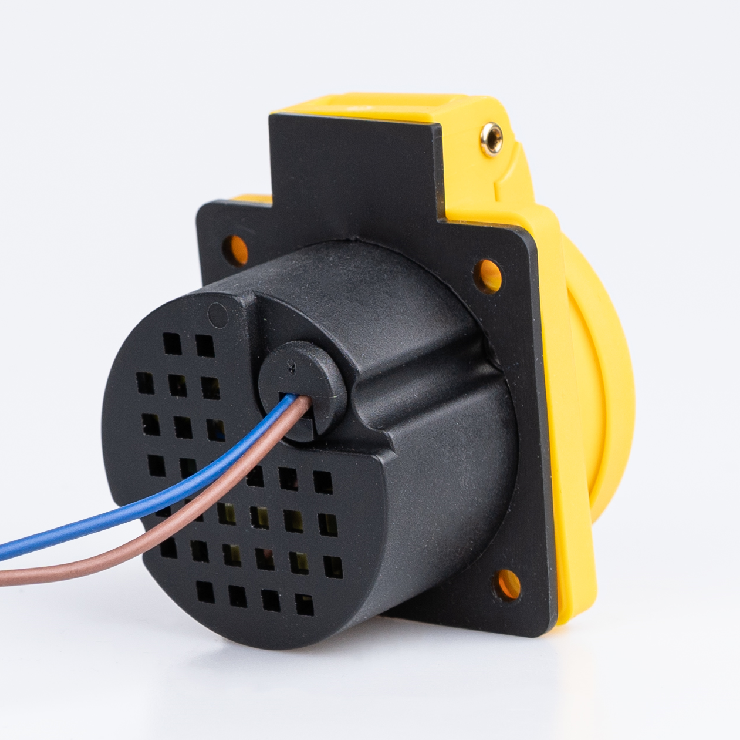

Small installation dimensions (approx. 27.5 x Ø43 mm)
